3 Position 4 Way Pneumatic Manual Directional Control Hand Switching Valve G1/4"~G1/2"

Name: 3 Position 4 Way Pneumatic Manual Directional Control Hand Switching Valve G14quotG12quot
Brand: FLUIDAC or OEM
Price: 5 USD

Place of Origin : Ningbo China(Mainland)

Brand Name : FLUIDAC or OEM

Certification : ISO9001

Model Number : HV-02

MOQ : 5 piece

Price : USD5--

Packaging Details : Boxes, Cartons,Wooden cases,Pallets

Delivery Time : Within 20 days after receiving payment or deposit

Payment Terms : TT Advance/30% deposit,70% by copy Bill oflading,Western Union,Paypal

Supply Ability : 20000 Pieces Per month

series : HV Series

Switching Angle : 90º

Function Type : Three position four way

Motion Pattern : Direct Acting

Port Size : G1/4

Product : Manual Directional Control Valve

Working Pressure : 0~0.8MPa

Contact Now

3 Position 4 Way Pneumatic Manual Directional Control Hand Switching Valve G1/4"~G1/2"

HV Series Three position four way hand switching valve port size G1/4,G3/8,G1/2 e.g HV-02 Various handler for option

Quick Detail:

* HV Series hand switching valve
* Three position Four Way
* Port Size G1/4,G3/8,G1/2
* Various handler shape selectable
* Switching angle 90º,sensitive repond acting
* Smooth switching,Long service life

Applications:

HV series hand switching valve manual operated use for fast direction change of anywhere and anytime necessary function required by manual operating,Due to easy and flexible operating,it was widely use in the Pneumatic system

Specifications:

3 Position 4 Way Pneumatic Manual Directional Control Hand Switching Valve G1/4"~G1/2"

ORDERING CODE
HV	02
Type	Port Size
HV:HV Series Three Position Four way Hand Switching Valve	02:G1/4"
	03:G3/8"
	04:G1/2"

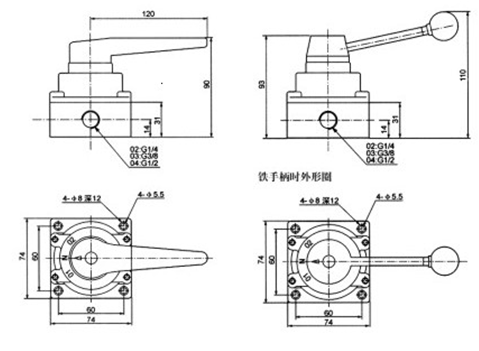

SPECIFICATION
Model no	HV-02	HV-03	HV-04
Working Medium	Compressed 40 Micron Filtered Air
Body Material	Aluminum Alloy
Position And Way Numbers	Three Position Four Way
Port Size	G1/4"	G3/8"	G1/2"
Motion Pattern	Direct Acting
Working Pressure	0~0.8MPa
Switching Angle	90º
Operating Temperature	0~70℃

3 Position 4 Way Pneumatic Manual Directional Control Hand Switching Valve G1/4"~G1/2"

Pneumatic Valve,Hand Rotary Valve,Manual Operated valve
